1543890969 化工级电动球阀
-
1543890969 化工级电动球阀
特色 Features
坚固的结构适用于严苛的工况环境
Heavy Duty construction
能承受强负荷，大直径阀杆，防止弯曲或者断裂
Heavy-duty, large diameter shaft to eliminate flexing and breakage.
PTFE增强阀座，消除磨损，减少摩擦，提高了阀门的使用寿命
PTFE seats energized with O-rings eliminate wear and improve cycle life.
精密加工的球和阀座确保低扭矩无泄漏
Fully concentric and mirror polished ball assures smooth, leak-proof operation.
流体路径畅通，减少了压降
Smooth flow path eliminates pressure loss.
由令方便拆卸及维修
True-union ends for ease of piping installation and removal
连接方式：承插式 螺纹式 法兰式 对焊式
Connect Way: Socket Weld /Threaded/ flange /Butt weld
材质：UPVC CPVC PP PVDF
Body Material :UPVC CPVC PP PVDF
密封材质：EPDM或者FKM
Seal Material: EPDM or FKM(Viton)
尺寸：1/2”-4”（DN15-DN100）
Size:1/2”-4”（DN15-DN100）
出厂前逐个100%检测
Every valve are individually tested prior to shipment.
标准特征 STANDARD FEATURES
具有坚固的防水和防腐的ABS外壳。
Rugged weatherproof and anti-corrosive ABS housing
多电压驱动（DC12V/24V,AC24V/110V/230V,AC/DC24V,AC95-265V），带自动电压感应
Multi-voltage （DC12V/24V,AC24V/110V/230V,AC/DC24V,AC95-265V）with auto-voltage sensing.
内置电机过载保护器
Thermally protected motor
容易转动的手动轮便于手动操作
Easy-to-turn hand wheel for manual override
67防护等级
IP67 ingress protection
开关寿命可以达20000次
20,000+ cycle design.
基本开关型 BASIC ON-OFF
大的圆形可视位置指示器
Large, dome style visual position indicator
可选Fail-Safe （断电复位）(AC/DC95V-265V,AC/DC24V)
Fail-safe options(AC/DC95V-265V,AC/DC24V)
可选防冷凝加热器
Thermostatic anti-condensation heater options
可选高速运行型（DC24V 1-2s,AC220V 5-7s）
HI‐SPEED（DC24V 1-2s,AC220V 5-7s）options

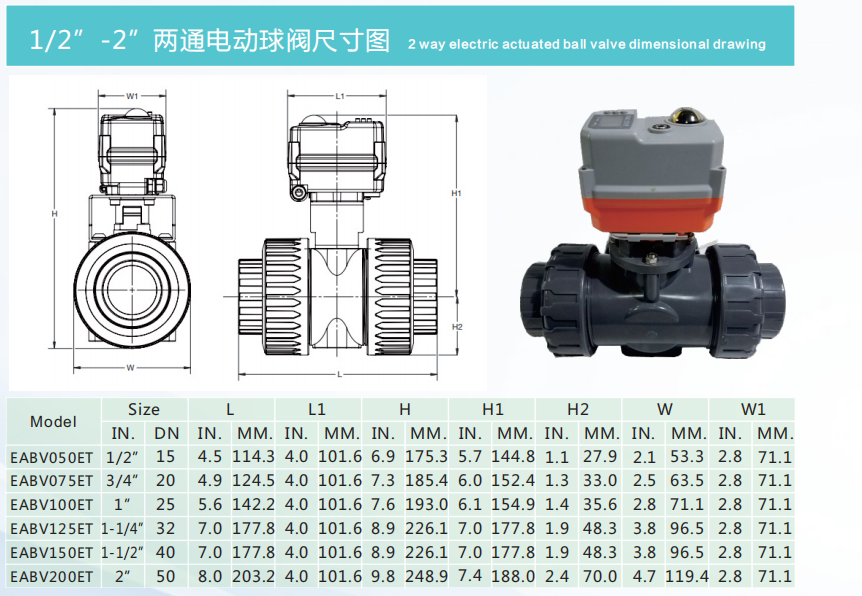

型号：
|
管径 |
电动PVC球阀 |
电动PVC三通球阀 |
|
1/2" |
EABV050ET-PV |
TEABV050ET-PV |
|
3/4" |
EABV075ET-PV |
TEABV075ET-PV |
|
1" |
EABV100ET-PV |
TEABV100ET-PV |
|
1-1/4" |
EABV125ET-PV |
TEABV125ET-PV |
|
1-1/2" |
EABV150ET-PV |
TEABV150ET-PV |
|
2" |
EABV200ET-PV |
TEABV200ET-PV |
|
2-1/2" |
EABV250ET-PV |
NA |
|
3" |
EABV300ET-PV |
NA |
|
4" |
EABV400ET-PV |
NA |
|
5" |
NA |
NA |
|
6" |
NA |
NA |
|
8" |
NA |
NA |
|
1、上述球阀型号为EPDM密封,由令螺纹连接，如需插接，将型号中的T改为S，如果密封为FKM ，型号中的E改为V；三通球阀有T型和L型，在型号后面+T或L；如TEABV050ET-PV-L 1、The above-mentioned ball valve is EPDM seal, which is connected by threads or union. If inserting is needed, the T in the model is changed to S, and if the seal is FKM. The E in the model is changed to V; the three way ball valve has T and L type, adding T or L at the rear of the model; TEABV050ET-PV-L. 2、上述阀门价格为AC24/110V/220V基本开关型电动执行器，要选Fail-Safe （断电复位）(AC/DC95V-265V,AC/DC24V)、防冷凝加热、高速型，分别在后面加01、02、03、04，如TEABV050ET-PV-L-04；要选智能开关型和智能调节性在型号后面分别加SO或者SR，并分别在其后面要选Fail-Safe （断电复位）(AC/DC95V-265V,AC/DC24V)、防冷凝加热、高速型、液位专用型分别在后面加01、02、03、04、05，如EABV050ET-PV-SO-05 2, The above-mentioned valve price is AC24/110V/220V basic switch type electric actuator, to choose Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), anti-condensation heating, high-speed type, respectively, adding 01, 02, 03, 04 behind, such as TEABV050ET-PV-L-04; to choose intelligent switch type and intelligent regulation in the model after adding SO or SR behind respectively. Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), anti-condensation heating, high-speed type, and liquid level special type should be added to the back of Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), such as EABV050ET-PV-SO-05, respectively.
|
