坚固的结构适用于严苛的工况环境



Heavy Duty construction

能承受强负荷，大直径阀杆，防止弯曲或者断裂

 Heavy-duty, large diameter shaft to eliminate flexing and breakage.

PTFE增强阀座，消除磨损，减少摩擦，提高了阀门的使用寿命

PTFE seats energized with O-rings eliminate wear and improve cycle life.

精密加工的球和阀座确保低扭矩无泄漏

 Fully concentric and mirror polished ball assures smooth, leak-proof operation.
流体路径畅通，减少了压降

Smooth flow path eliminates pressure loss.

由令方便拆卸及维修

 True-union ends for ease of piping installation and removal

连接方式：承插式 螺纹式 法兰式 对焊式

Connect Way: Socket Weld /Threaded/ flange /Butt weld

材质：UPVC  CPVC  PP  PVDF

 Body Material :UPVC  CPVC  PP  PVDF

密封材质：EPDM或者FKM

Seal Material: EPDM or FKM(Viton)

尺寸：1/2”-4”（DN15-DN100）

Size:1/2”-4”（DN15-DN100）

出厂前逐个100%检测

Every valve are individually tested prior to shipment.



标准特征  STANDARD FEATURES

具有坚固的防水和防腐的ABS外壳。

 Rugged weatherproof and anti-corrosive ABS housing

多电压驱动（DC12V/24V,AC24V/110V/230V,AC/DC24V,AC95-265V），带自动电压感应

Multi-voltage （DC12V/24V,AC24V/110V/230V,AC/DC24V,AC95-265V）with auto-voltage sensing.

内置电机过载保护器

Thermally protected motor

容易转动的手动轮便于手动操作

 Easy-to-turn hand wheel for manual override

67防护等级

IP67 ingress protection

开关寿命可以达20000次

 20,000+ cycle design.





智能开关型  SMART ON-OFF

额定电压：AC/DC95V-265V,AC/DC24V

Rated Voltage：AC/DC95V-265V,AC/DC24V



控制与反馈方式：反馈与到位同步

采用1.3吋OLED大液晶屏，无视角限制，高亮度，实时显示阀门开度及外部命令，约5分钟后自动进入休眠状态，并在休眠期间提示位置状态及其控制命令；

 With 1.3” OLED screen and 3 positive push buttons create a user friendly interface  for local control and a variety of adjustments. The screen is easy to read, with bright blue leers on a black background, and the use of the  push buttons to adjust sensing is intuitive. The local controls require power to be applied to the actuator to operate.



免开盖调阀，彻底解决机械式定位开关阀位调整的繁琐与不便；

No opening cover to adjust valve , completely solve the complexity and inconvenience of adjustment and on-off valve by mechanical positioning

高性能CPU，高精度转换芯片，内置独特程序，能实现精确地开启和闭合，特别适合三通球阀；

故障菜单实时提醒，通过菜单可以阀门控制命令的交换，可实现远程控制和现场控制的切换，并通过按键实现阀门的开启与关闭，可实时调整阀门的开关速度，可通过按键恢复出厂设置。

High-performance CPU, high-precision conversion chip, built-in unique procedures to achieve accurate opening and closing, especially suitable for three-way ball valve; through the menu can be the exchange of valve control commands, can achieve remote control and field control of the switch, and through the button to achieve the opening and closing of the valve, real-time adjustment of the valve's switching speed, through the button to restore factory settings.

可选断电复位；可选故障报警输出信号；

Fail-safe options; fault alarm output signal options

可选液位专用型（可与液位传感器相连，实现对液位的控制）

Liquid -level options(control the liquid level switch through the valve on or off)

可选高速运行型（DC24V 1-2s,AC220V 5-7s）

 HI‐SPEED（DC24V 1-2s,AC220V 5-7s）options

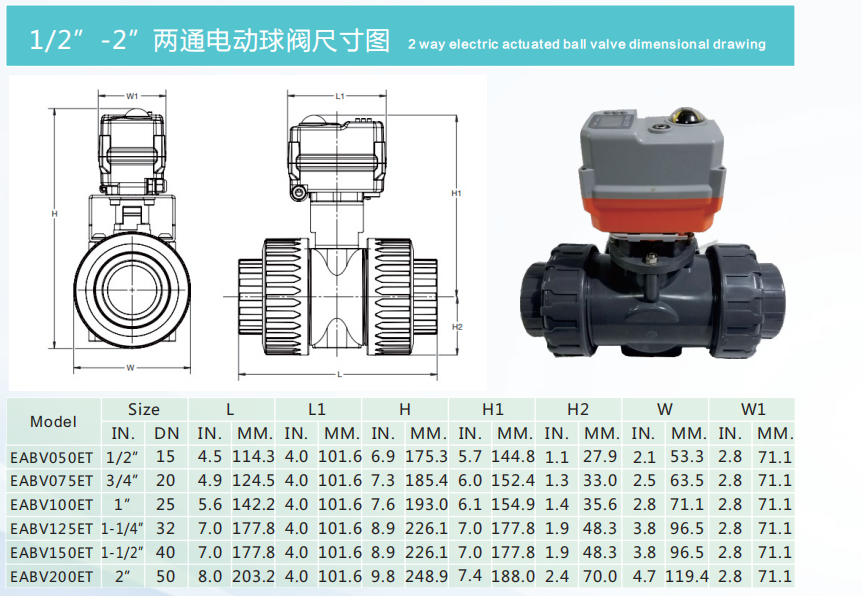

型号：

管径	电动PVC球阀	电动PVC三通球阀
1/2"	EABV050ET-PV	TEABV050ET-PV
3/4"	EABV075ET-PV	TEABV075ET-PV
1"	EABV100ET-PV	TEABV100ET-PV
1-1/4"	EABV125ET-PV	TEABV125ET-PV
1-1/2"	EABV150ET-PV	TEABV150ET-PV
2"	EABV200ET-PV	TEABV200ET-PV
2-1/2"	EABV250ET-PV	NA
3"	EABV300ET-PV	NA
4"	EABV400ET-PV	NA
5"	NA	NA
6"	NA	NA
8"	NA	NA

1、上述球阀型号为EPDM密封,由令螺纹连接，如需插接，将型号中的T改为S，如果密封为FKM    ，型号中的E改为V；三通球阀有T型和L型，在型号后面+T或L；如TEABV050ET-PV-L   1、The above-mentioned ball valve is EPDM seal, which is connected by threads or union. If inserting is needed, the T in the model is changed to S, and if the seal is FKM. The E in the model is changed to V; the three way ball valve has T and L type, adding T or L at the rear of the model; TEABV050ET-PV-L.   2、上述阀门价格为AC24/110V/220V基本开关型电动执行器，要选Fail-Safe （断电复位）(AC/DC95V-265V,AC/DC24V)、防冷凝加热、高速型，分别在后面加01、02、03、04，如TEABV050ET-PV-L-04；要选智能开关型和智能调节性在型号后面分别加SO或者SR，并分别在其后面要选Fail-Safe （断电复位）(AC/DC95V-265V,AC/DC24V)、防冷凝加热、高速型、液位专用型分别在后面加01、02、03、04、05，如EABV050ET-PV-SO-05   2, The above-mentioned valve price is AC24/110V/220V basic switch type electric actuator, to choose Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), anti-condensation heating, high-speed type, respectively, adding 01, 02, 03, 04 behind, such as TEABV050ET-PV-L-04; to choose intelligent switch type and intelligent regulation in the model after adding SO or SR behind respectively. Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), anti-condensation heating, high-speed type, and liquid level special type should be added to the back of Fail-Safe (power-off reset) (AC/DC95V-265V, AC/DC24V), such as EABV050ET-PV-SO-05, respectively.
